DIN 917 Low Form Hex Cap Nuts
DIN 917 Low Form Hex Cap Nuts made of steel or stainless steel, size M4 – M24 from China Hex Cap Nuts Manufacturer.
 |
 |

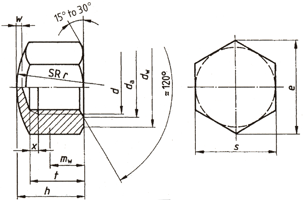

DIN 917 Low Form Hex Cap Nuts
Standard: DIN 917
Material: Steel / Stainless Steel
Size: M4 – M24
| Size | e min. | h max | h min | m´min | s max | s min | t max. |
| M4 | 7,66 | 5,5 | 5,2 | 2,75 | 7 | 6,78 | 4,64 |
| M5 | 8,79 | 7 | 6,64 | 3,5 | 8 | 7,78 | 5,44 |
| M6 | 11,05 | 9 | 8,64 | 4,5 | 10 | 9,78 | 7,29 |
| M8 | 14,38 | 12 | 11,57 | 6 | 13 | 12,73 | 9,79 |
| M10 | 17,77 | 14 | 13,57 | 7 | 16 | 15,73 | 11,35 |
| M12 | 20,03 | 16 | 15,57 | 8 | 18 | 17,73 | 13,85 |
| (M14) | 23,35 | 18 | 17,57 | 9 | 21 | 20,67 | 15,35 |
| M16 | 26,75 | 20 | 19,48 | 10 | 24 | 23,67 | 17,35 |
| (M18) | 29,56 | 22 | 21,48 | 11 | 27 | 26,16 | 19,42 |
| M20 | 32,95 | 25 | 24,48 | 12,5 | 30 | 29,16 | 21,42 |
