DIN 6799 / D1500 E circlip / e-clips

DIN 6799 E circlip / e-clips ,  D1500/RA type Retaining rings made of Spring steel 65Mn,  Black oxide , size d1.2-30mm from China Retaining Rings Manufacturer.

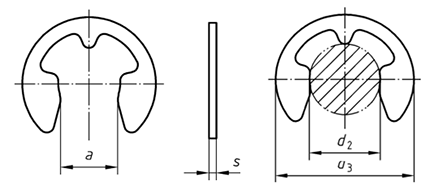

DIN 6799 / D1500 E circlip / e-clips DIN 6799 / D1500 E circlip / e-clips drawing

DIN 6799 / D1500 RA type E circlip / e-clips
Standard: DIN6799, Type RA
Material: Spring Steel 65Mn
Size: d1.2-30mm

DIN 6799/D1500 RA type E circlips / E-clips specification :

d1 d2 max. s Tol. d3
from to
0.8 2.25 0.2 ±0.02 1 1.4
1.2 3.25 0.3 1.4 2
1.5 4.25 0.4 2 2.5
1.9 4.8 0.5 2.5 3
2.3 6.3 0.6 3 4
3.2 7.3 0.6 4 5
4 9.3 0.7 5 7
5 11.3 0.7 6 8
6 12.3 0.7 7 9
7 14.3 0.9 ±0.03 8 11
8 16.3 1 9 12
9 18.8 1.1 10 14
10 20.4 1.2 11 15
12 23.4 1.3 13 18
15 29.4 1.5 16 24
19 37.6 1.75 20 31
24 44.6 2 25 38
30 52.6 2.5 32 42
