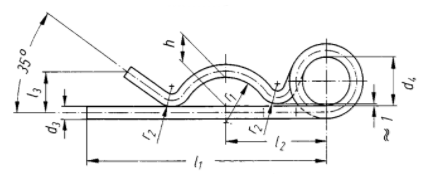

DIN 11024 Double Coil Spring Cotter Pin
Double Coil Spring Cotter Pin , DIN 11024 Form D, made of spring steel, Wire Diameter 1.0mm – 8.0mm from China Spring Cotter Pins Manufacturer.
 |
 |
Double Coil Spring Cotter Pin
Standard: DIN 11024
Material: Spring Steel – SAE1070
Size: 1.0 – 8.0
| Item | Standard | Wire Diameter | Length (mm) |
| Double Coil Spring Cotter Pin | DIN 11024 | 2.0 | 50 |
| Double Coil Spring Cotter Pin | DIN 11024 | 2.0 | 60 |
| Double Coil Spring Cotter Pin | DIN 11024 | 3.0 | 80 |
| Double Coil Spring Cotter Pin | DIN 11024 | 3.5 | 90 |
| Double Coil Spring Cotter Pin | DIN 11024 | 4.0 | 110 |
| Double Coil Spring Cotter Pin | DIN 11024 | 4.0 | 120 |
| Double Coil Spring Cotter Pin | DIN 11024 | 5.0 | 95 |
| Double Coil Spring Cotter Pin | DIN 11024 | 5.0 | 115 |
| Double Coil Spring Cotter Pin | DIN 11024 | 6.0 | 120 |
| Double Coil Spring Cotter Pin | DIN 11024 | 6.3 | 150 |
| Double Coil Spring Cotter Pin | DIN 11024 | 7.0 | 150 |
| Double Coil Spring Cotter Pin | DIN 11024 | 8.0 | 160 |
