Cotter Pins
Cotter Pins, DIN 94 or ISO 1234, material: steel or stainless steel, dia. 1.5mm-10mm, from China cotter pins manufacturer.
Item: Cotter Pins
Standard: DIN 94 / ISO 1234
Finish: Zinc plated
 |
 |

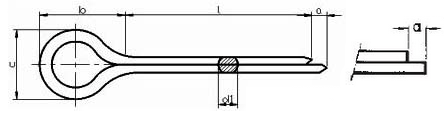

DIN 94 / ISO 1234 Cotter Pins Size :
| Item | Standard | Material | Size | Length |
| Cotter Pins | DIN 94 / ISO 1234 | Galv. Steel | 1.2 | 6-18mm |
| Cotter Pins | DIN 94 / ISO 1234 | Galv. Steel | 1.6 | 8-32mm |
| Cotter Pins | DIN 94 / ISO 1234 | Galv. Steel | 2 | 10-40mm |
| Cotter Pins | DIN 94 / ISO 1234 | Galv. Steel | 2.5 | 10-50mm |
| Cotter Pins | DIN 94 / ISO 1234 | Galv. Steel | 3.2 | 18-80mm |
| Cotter Pins | DIN 94 / ISO 1234 | Galv. Steel | 4 | 20-100mm |
| Cotter Pins | DIN 94 / ISO 1234 | Galv. Steel | 5 | 20-120mm |
| Cotter Pins | DIN 94 / ISO 1234 | Galv. Steel | 6.3 | 32-130mm |
| Cotter Pins | DIN 94 / ISO 1234 | Galv. Steel | 8 | 36-140mm |
| Cotter Pins | DIN 94 / ISO 1234 | Galv. Steel | 10 | 63-160mm |
